Single Pig System Demonstration
Click here for a demo

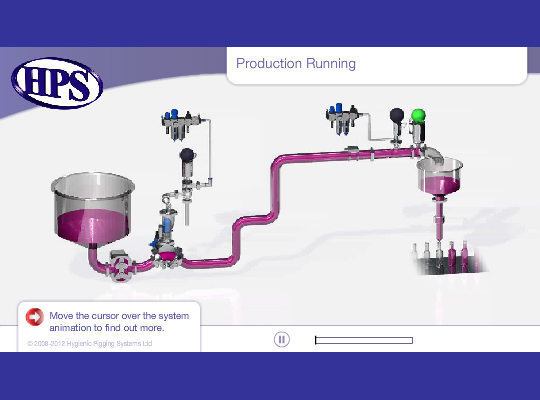

Click on the following image to view a demo of a typical Single Pig System. This will demonstrate a fully automatic system using a 3 Way 120° Pig Launch Ball Valve with the pig being propelled throught the pipe using a compressed gas. The Pig recovers product into the Filler, Storage Tank or Tanker that normally would be wasted. For sanitary / hygienic applications HPS CIP Ball Valve technology can be used. Click on the 3 Way Ball Valve where indicated to view operation of HPS Inflatable Seal Technology during Pigging, Washout, Santization or CIP.
Tank Select Pigging System Demonstration
Click here for a demo
Click on the following image to view a demo of a Tank Select Pigging
System. This will demonstrate a similar Launching System to the Single
Pig System, using a 3 Way 120° Pig Launch Ball Valve. However, this
demonstration shows how it is possible to use the Pigging System to
select and Pig any one of multiple tank destinations with a single pipe.
Click on the 3 Way Ball Valve and the 2 Way Ball Valve where indicated
to view operation of HPS Inflatable Seal Technology during Pigging,
Washout, Santization or CIP.
Double Pigging System Demonstration
Click here for a demo
Click on the following image to view a demo of a Double Pigging
System. This will demonstrate a similar Launching System to the Single
Pig System, using a 3 Way 120° Pig Launch Ball Valve. However, this
demostration shows how it is possible to use a second Pig in the system
to help prevent against product FOAMING/AERATION at transfer start up
that can be experienced in some shampoos, soaps or detergent
cleaners etc.... This type of system can also help prevent OXYGEN
PICKUP at transfer start up of products such as wine. Click on the 3 Way
Ball Valve and the 2 Way Ball Valve where indicated to view operation
of HPS Inflatable Seal Technology during Pigging, Washout, Santization
or CIP.
